COMMAND Center™ Sensors carefully measure and store temperature readings at fixed intervals depending on your specific needs for monitoring concrete temperature and strength gain.

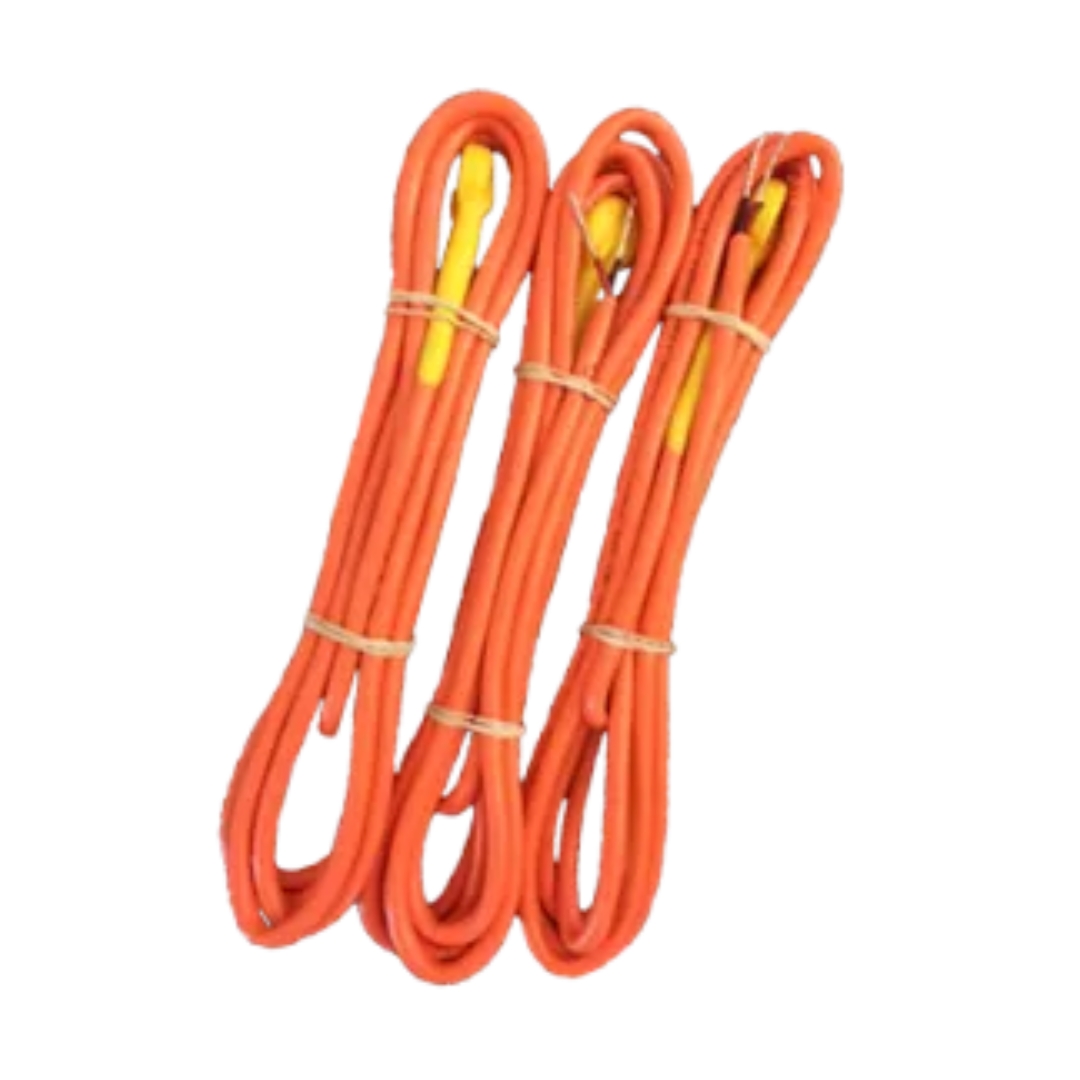

COMMAND Center™ Sensor
Price range: $49.00 through $78.00
Description
COMMAND Center™ Sensors carefully measure and store temperature readings at fixed intervals depending on your specific needs for monitoring concrete temperature and strength gain.
- Small, self-powered sensors continuously collect and store data for one year, under warranty.
- One sensor used for both temperature and maturity.
-
Sensors do not require initialization in the field.
-
Customize sensor lengths and time interval settings.
Details:
| Maturity Method | Nurse-Saul or Arrhenius (ASTM C 1074) |
| Datum Temperature/ Activation Energy | User Definable |
| Sensor Accuracy | +/- 1.0 °C (1.8 °F) |
| Sensor Resolution | 0.5 °C (1.0 °F) |
| Temperature Range | -40 to 85 °C (-40 to 185 °F) |
| Measurement Intervals | 1, 2, 5, 10, 15, 20, 30, 60 minute(s) |
| Sensor Size | 1/4 inch x 3/4 inch (6.35 mm x 19.05 mm) diameter |
| Cable Length | 4 ft (1.22 m), 8 ft (2.44 m), 15 ft (4.57 m), 30 ft (9.14 m), or 50 ft (15.24 m). Custom lengths available. |
| Sensor Battery Life | Warrantied for 1 year. |
Additional information
| Weight | N/A |
|---|---|
| Length | 4 ft (1.22 m), 8 ft (2.44 m), 15 ft (4.57 m), 30 ft (9.14 m), 50 ft (15.24 m), Custom Length |
| Measurement Intervals | 1 minute, 2 minutes, 5 minutes, 10 minutes, 15 minutes, 20 minutes, 30 minutes, 60 minutes |
