AutoCollector

$1,999

A reusable cellular transmitter to automatically collect and send concrete data to the COMMAND Center™ Cloud.

COMMAND Center™ AutoCollector uses a cellular signal to automatically send your concrete data to the COMMAND Center™ Cloud where teams can access it in real-time from anywhere, on or off the jobsite. The AutoCollector reads sensor data through a physical connection to sensors or by Bluetooth connection to AutoCollect-Enabled SRMs. The AutoCollector can retrieve data from AutoCollect-enabled SRMs within approximately 100 yards (100 meters).

AutoCollectors have a battery life of approximately two months and require four D-cell batteries. When cellular signal is not available, data can be retrieved locally over Bluetooth.

Sensors available separately.

Why COMMAND Center™ AutoCollect?

  • Automatically transmit data wirelessly to the COMMAND Center™ Cloud.

  • Access data remotely and in real time from anywhere, on or off the jobsite.
  • Receive real-time alerts via text message or email when your concrete approaches temperature limits or achieves target strength.
  • Collect data from multiple sensors with a minimum of one reusable AutoCollector.
  • Alternative download options and data redundancies reduce potential data loss.

Automatically collect concrete data in multiple ways:

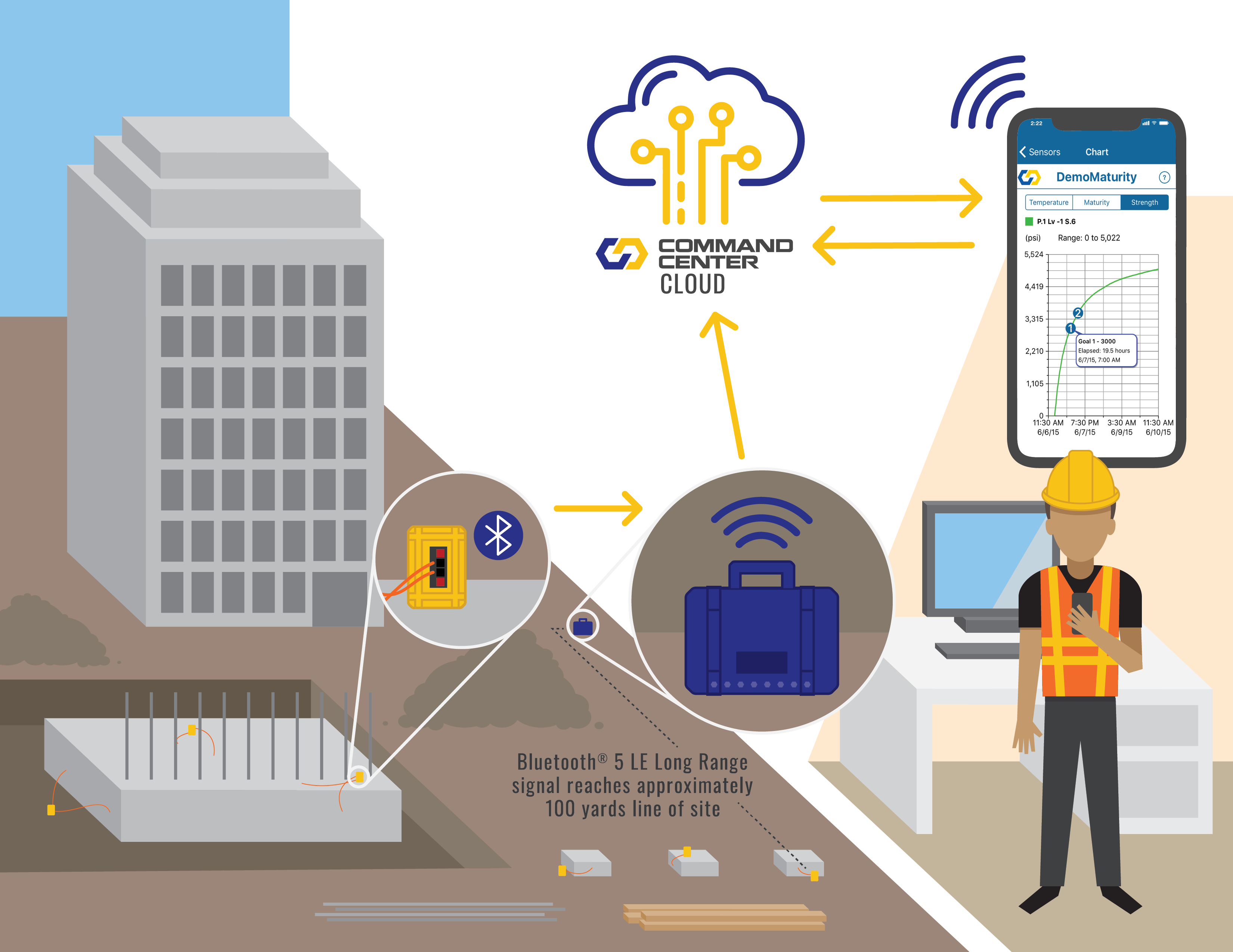

Connect COMMAND Center™ Sensors into new AutoCollect-Enabled Sensor Reader Modules (SRM). AutoCollect-Enabled SRMs transmit concrete data via Bluetooth to the AutoCollector. The AutoCollector then transmits concrete data to the COMMAND Center™ Cloud.

1

Connect COMMAND Center™ Sensors into new AutoCollect-Enabled Sensor Reader Modules (SRM). AutoCollect-Enabled SRMs transmit concrete data via Bluetooth to the AutoCollector. The AutoCollector then transmits concrete data to the COMMAND Center™ Cloud.

2

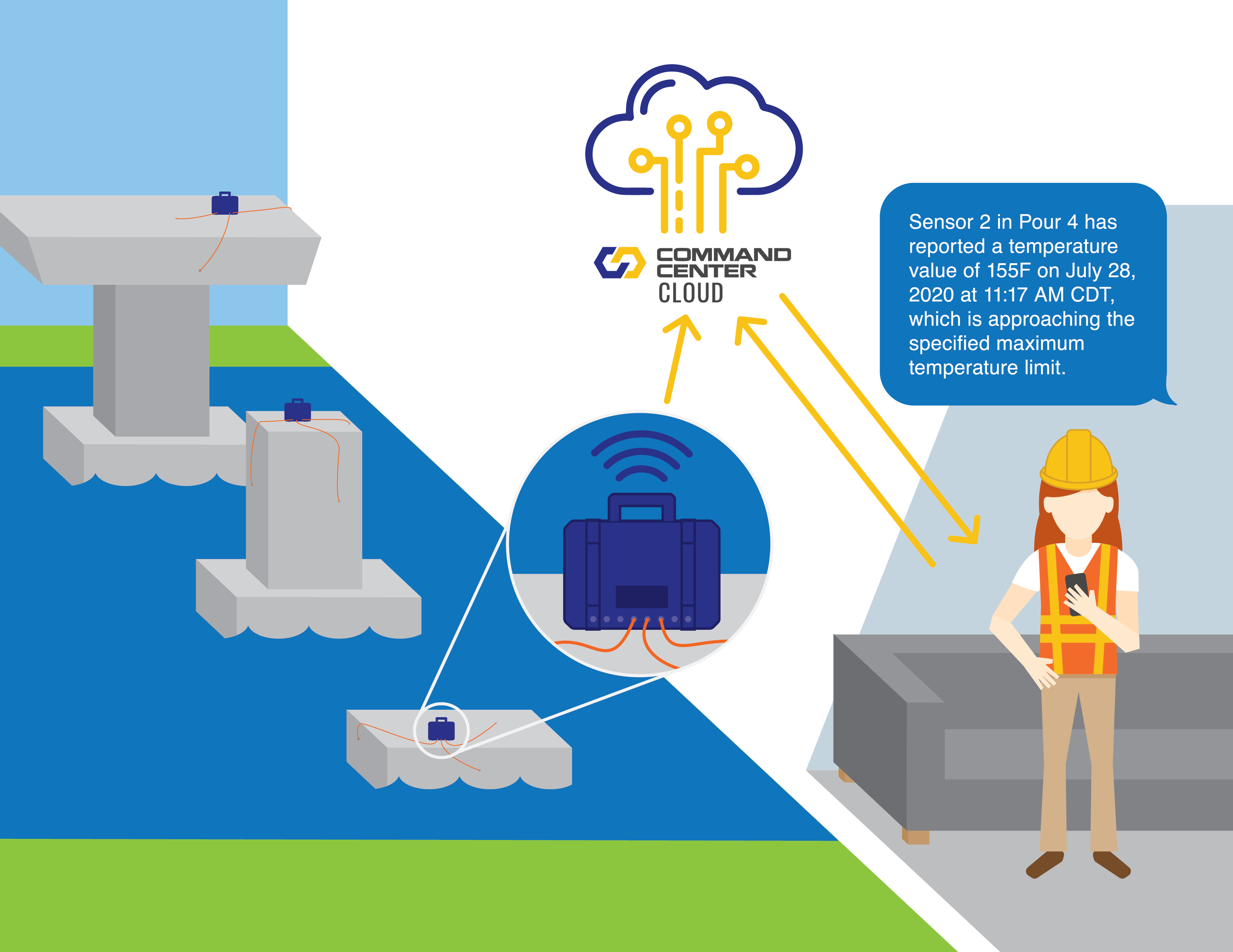

Connect one or more COMMAND Center™ Sensors directly into the AutoCollector. The AutoCollector will automatically read the sensor and send the data to the COMMAND Center™ Cloud.

Connect one or more COMMAND Center™ Sensors directly into the AutoCollector. The AutoCollector will automatically read the sensor and send the data to the COMMAND Center™ Cloud.
Use a combination of AutoCollect-Enabled SRMs and/or AutoCollectors to meet your project needs and budget. Only the AutoCollector can automatically transmit data directly to the cloud.

3

Use a combination of AutoCollect-Enabled SRMs and/or AutoCollectors to meet your project needs and budget. Only the AutoCollector can automatically transmit data directly to the cloud.
